Double wire fence 8/6/8 with posts model MAX in galvanized, anthracite or green

Fence package - Double wire fence 8/6/8 with posts, model MORITZ
Material: Galvanized and powder-coated steel in RAL 7016 anthracite or 6005 moss green

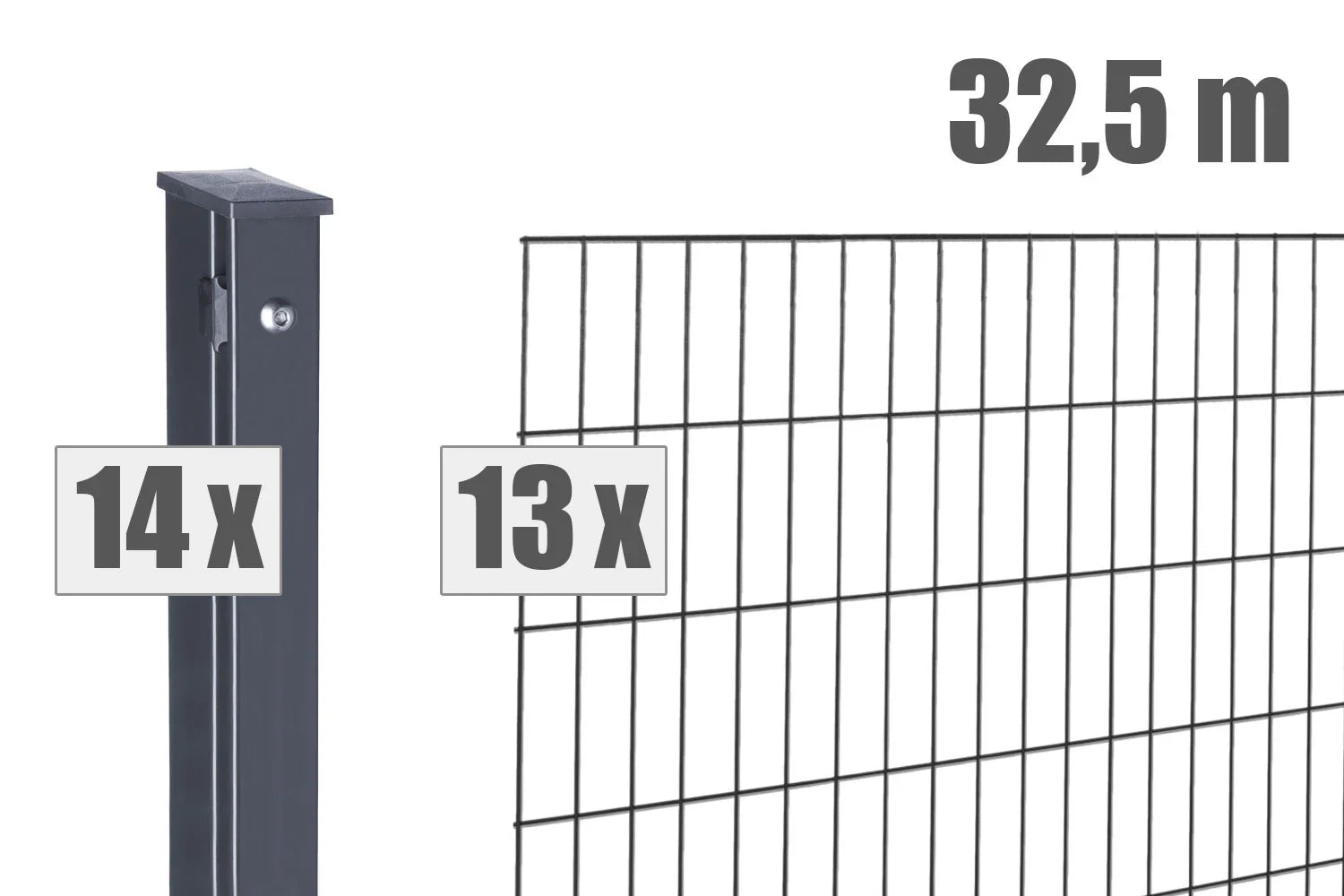

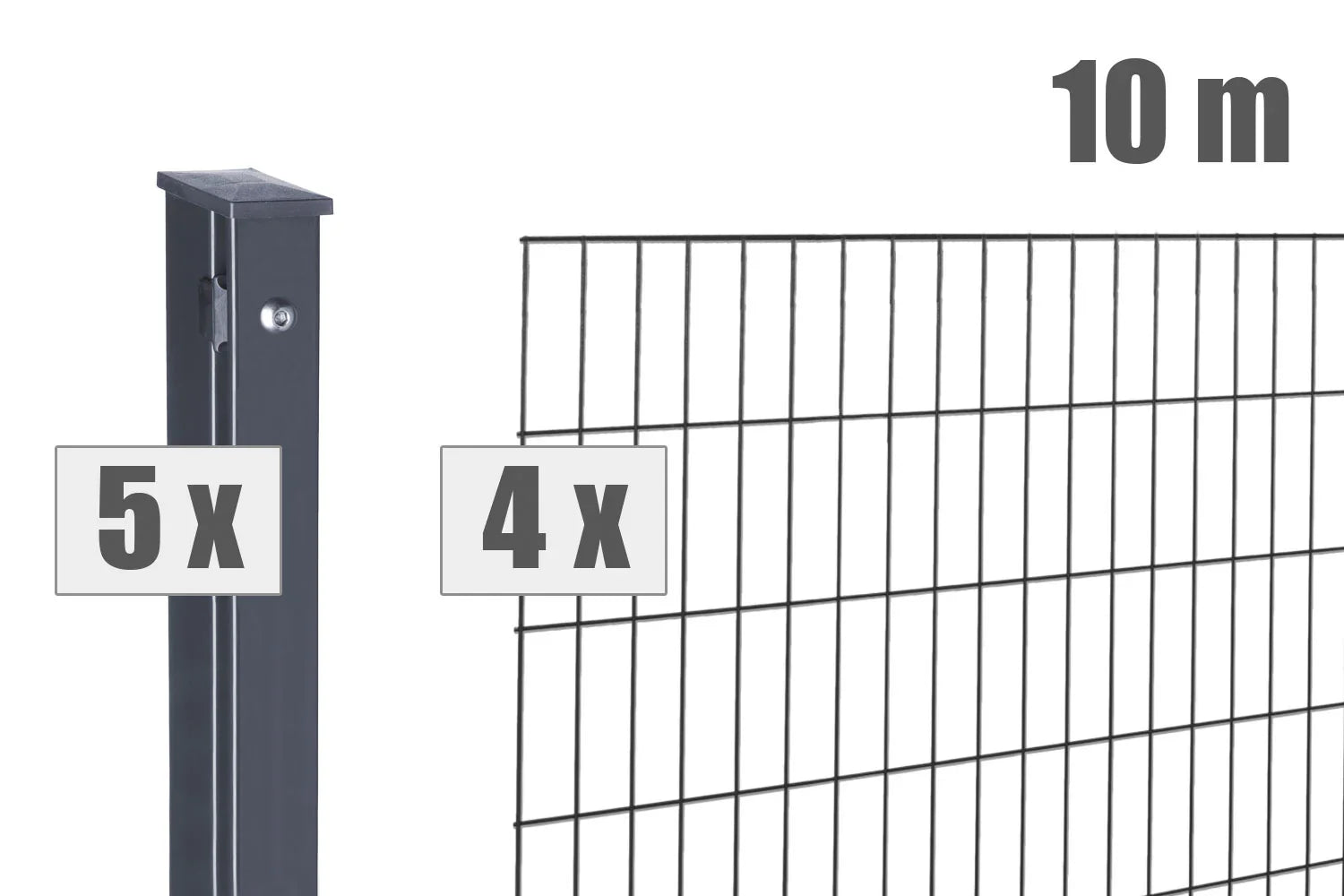

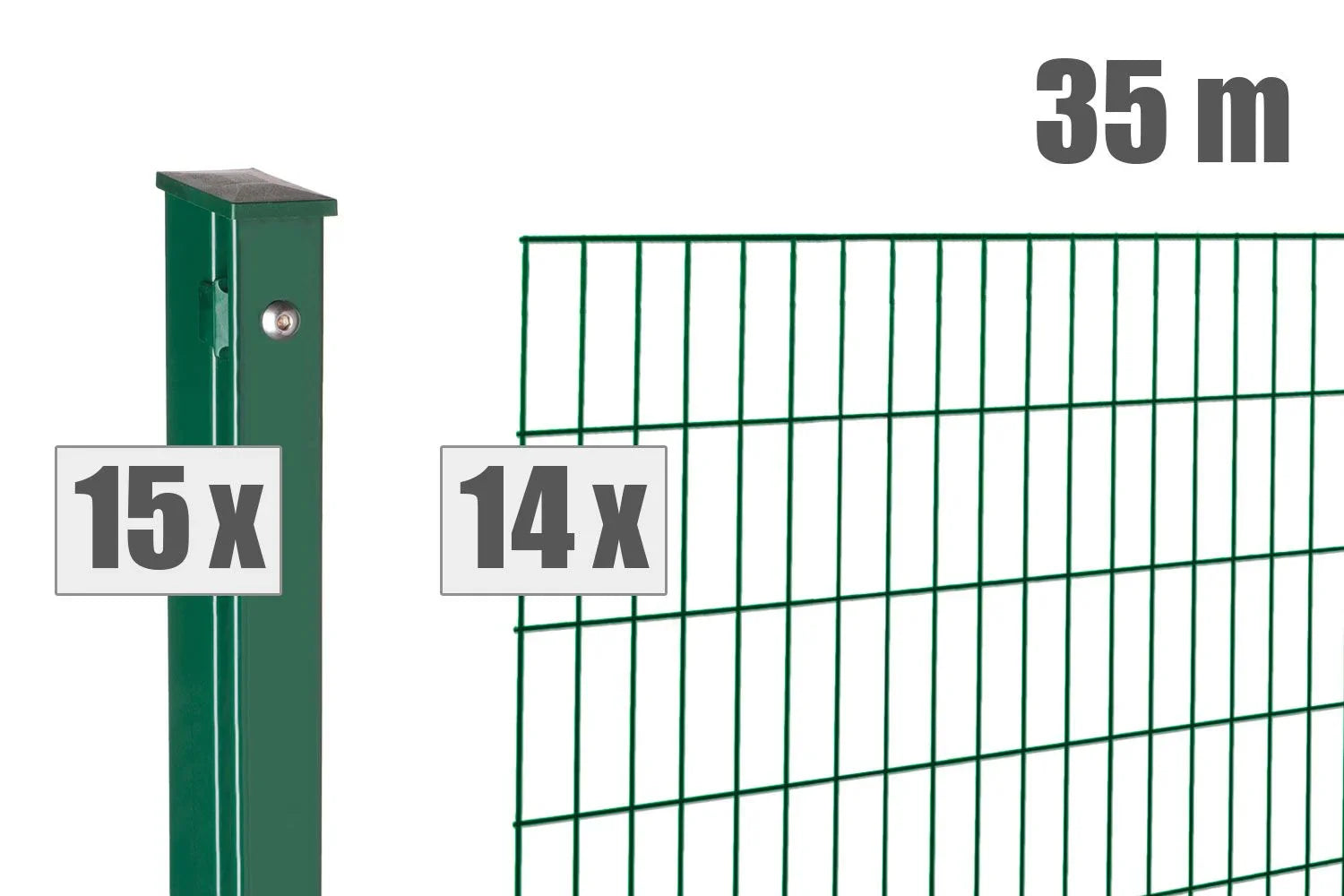

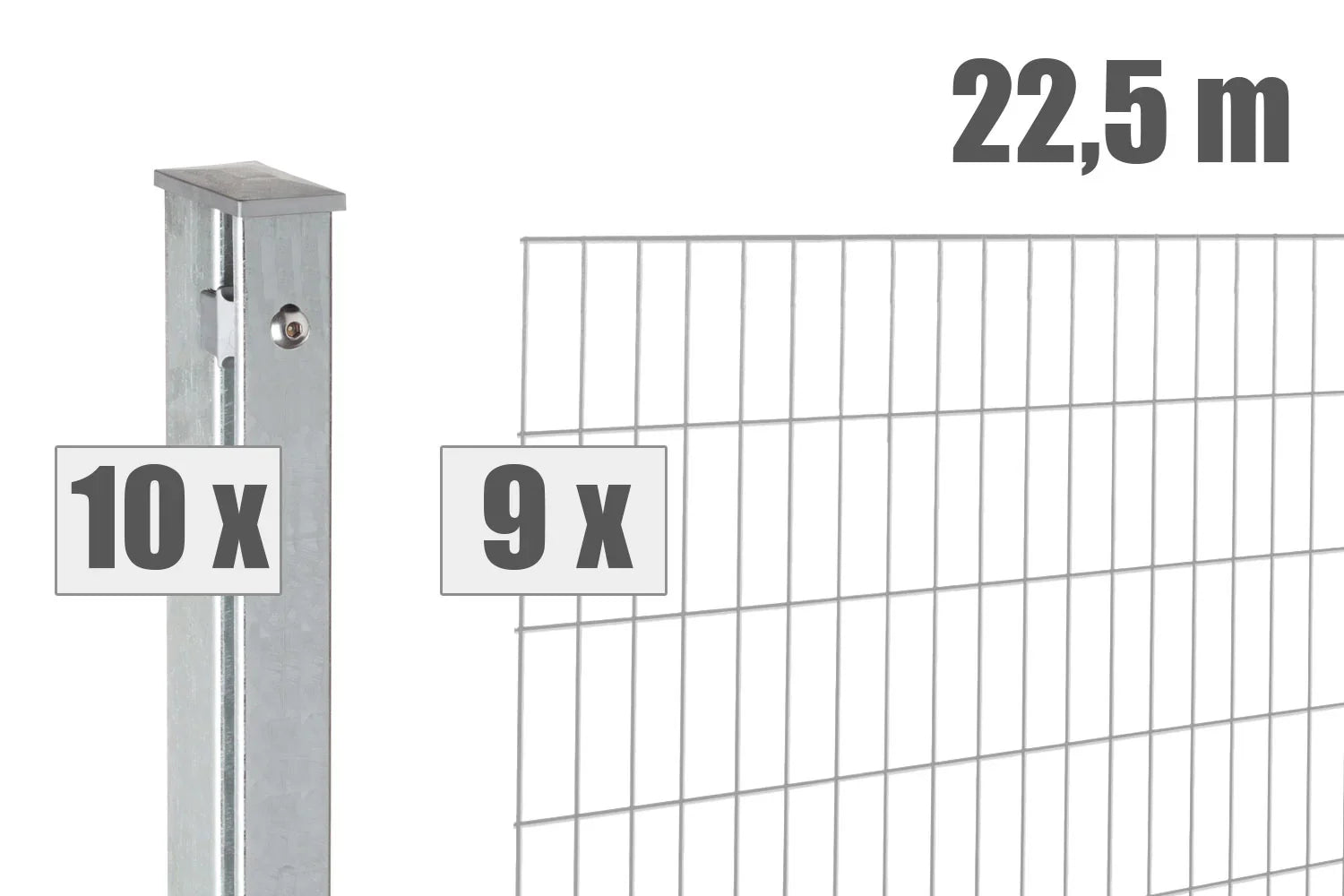

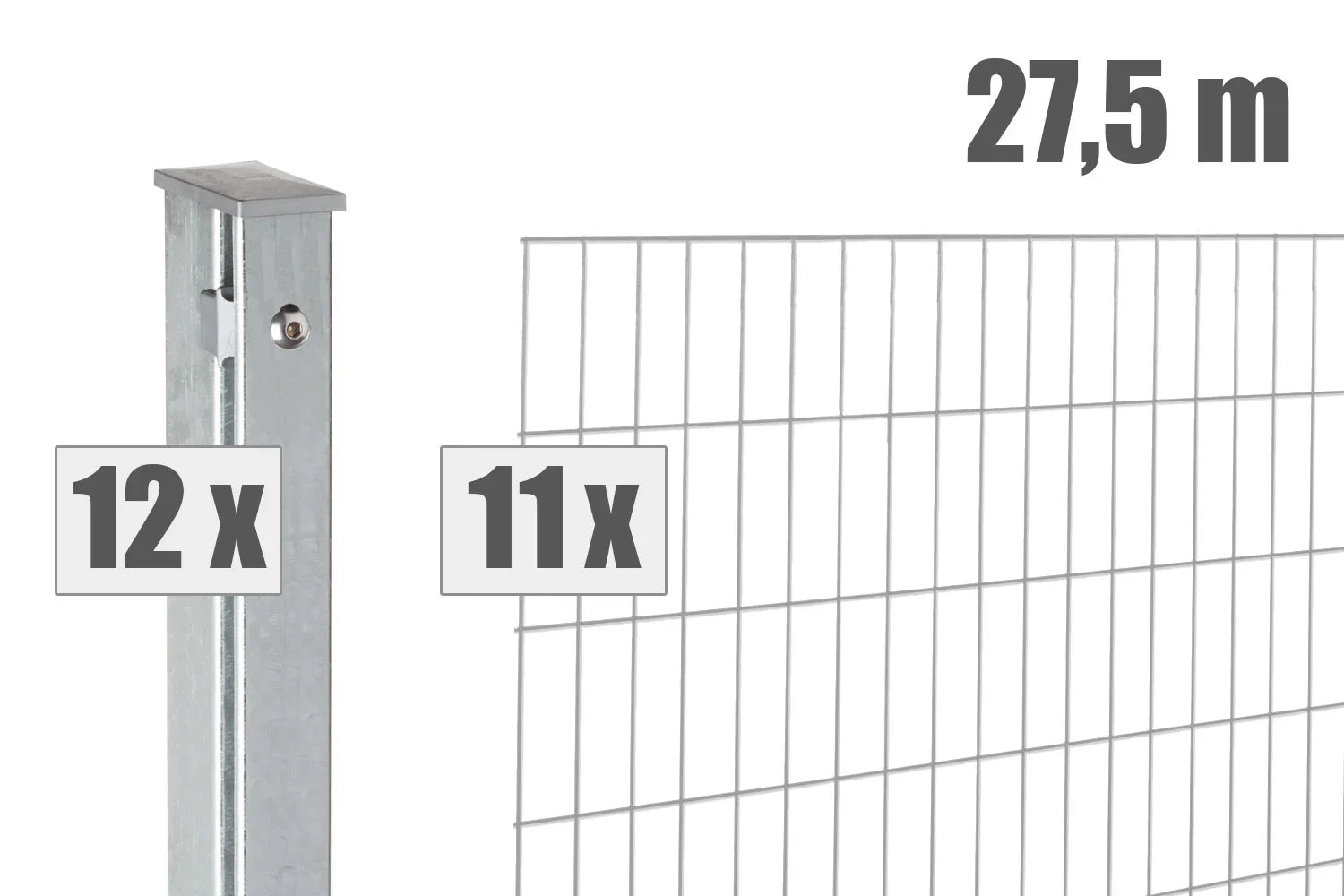

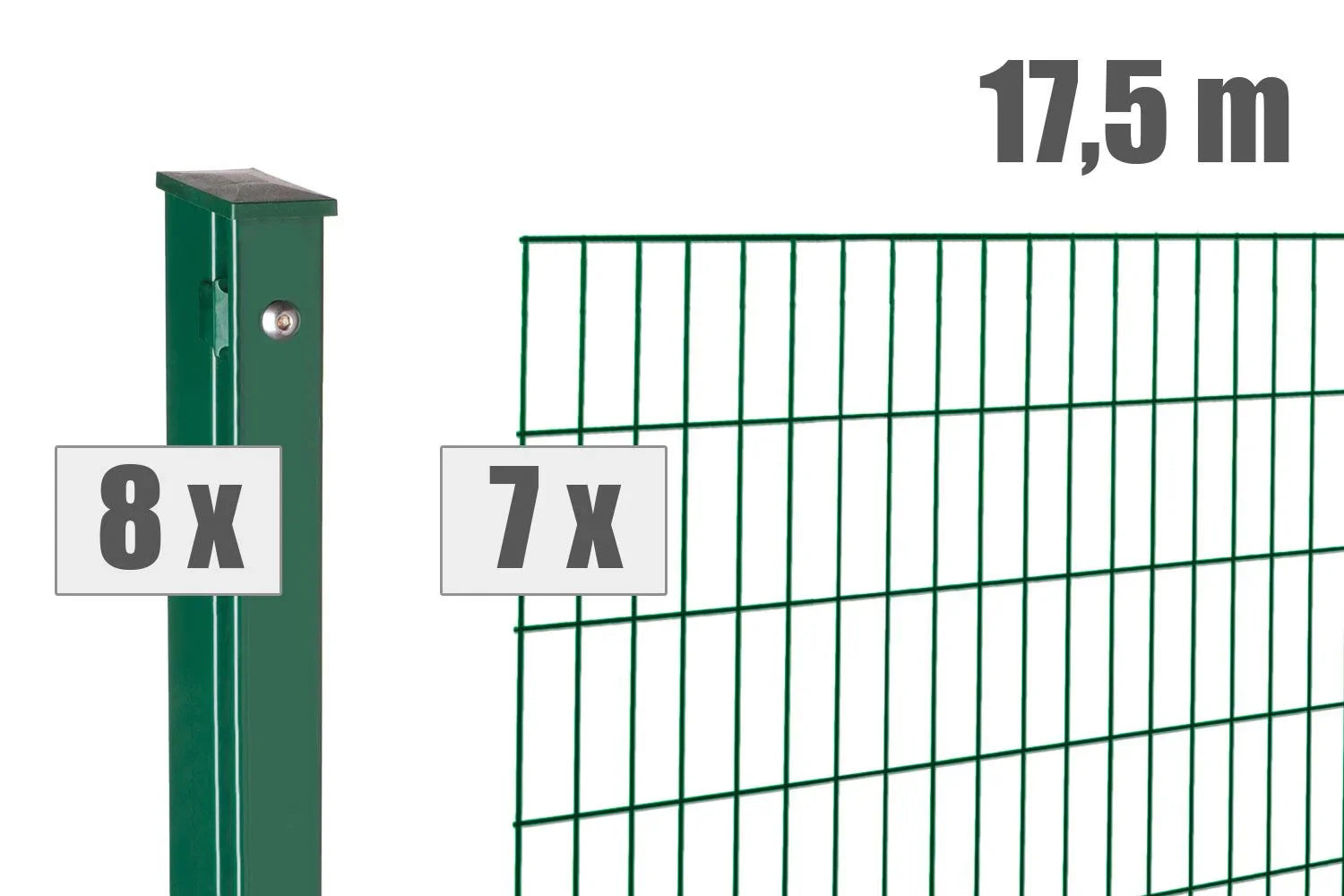

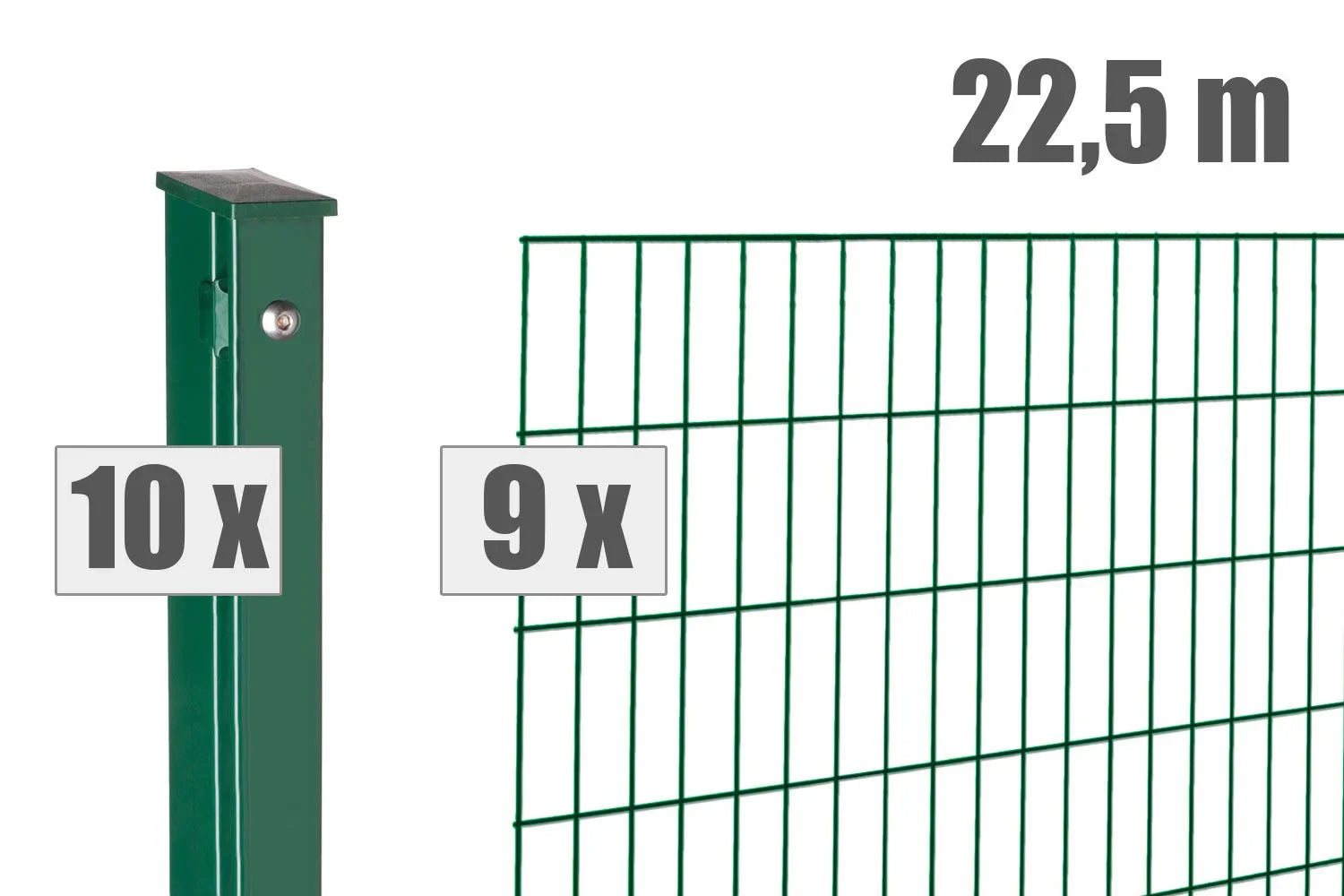

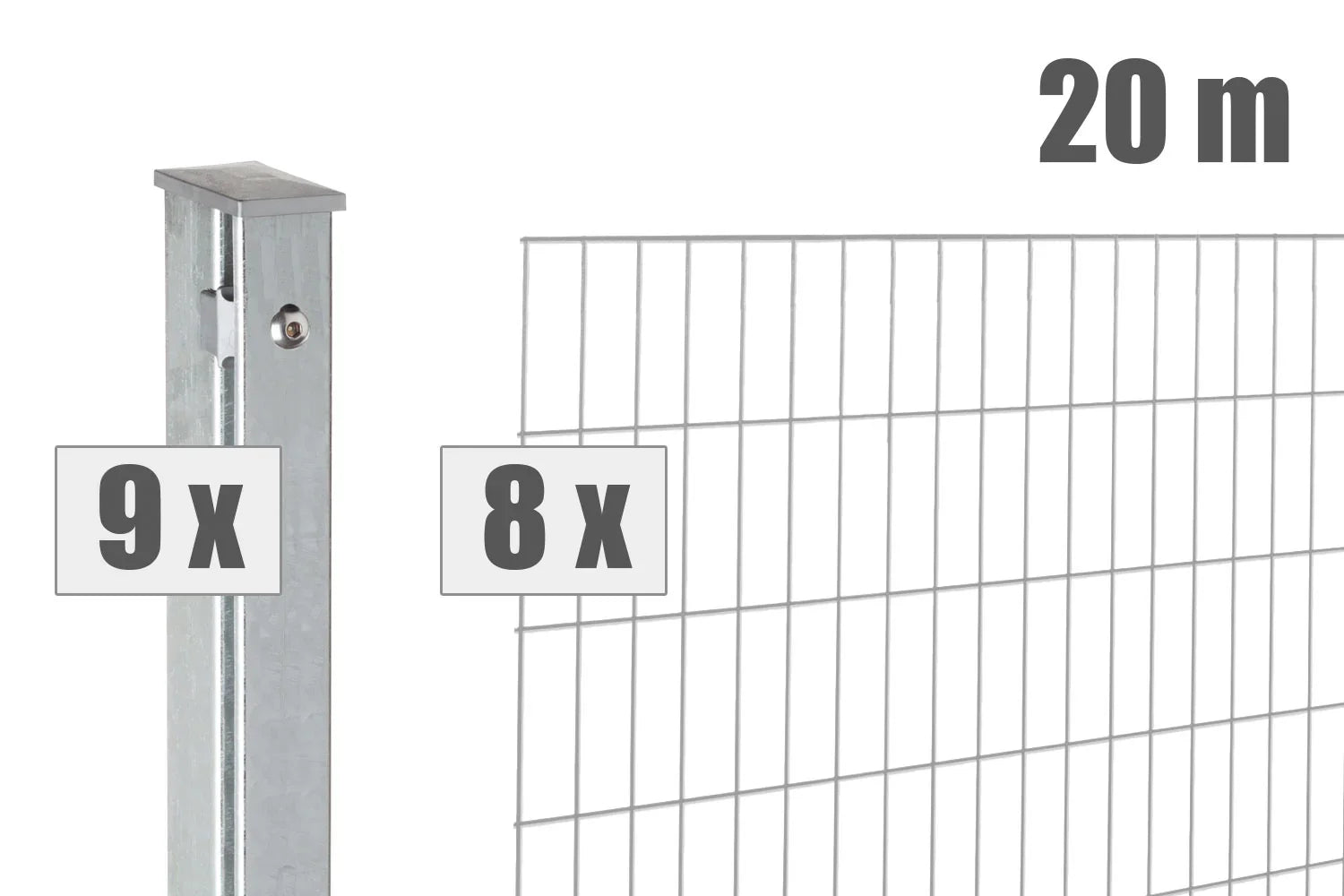

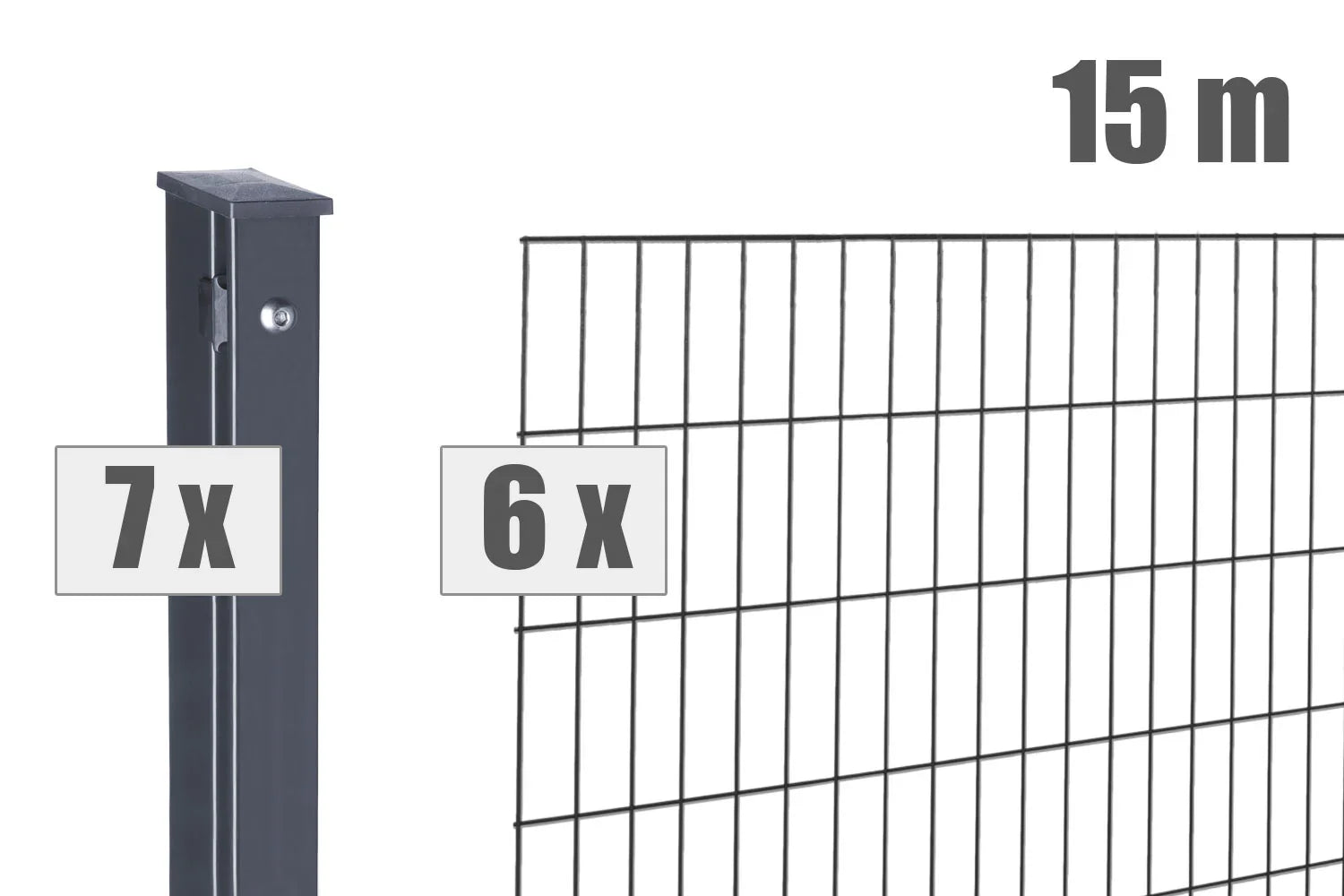

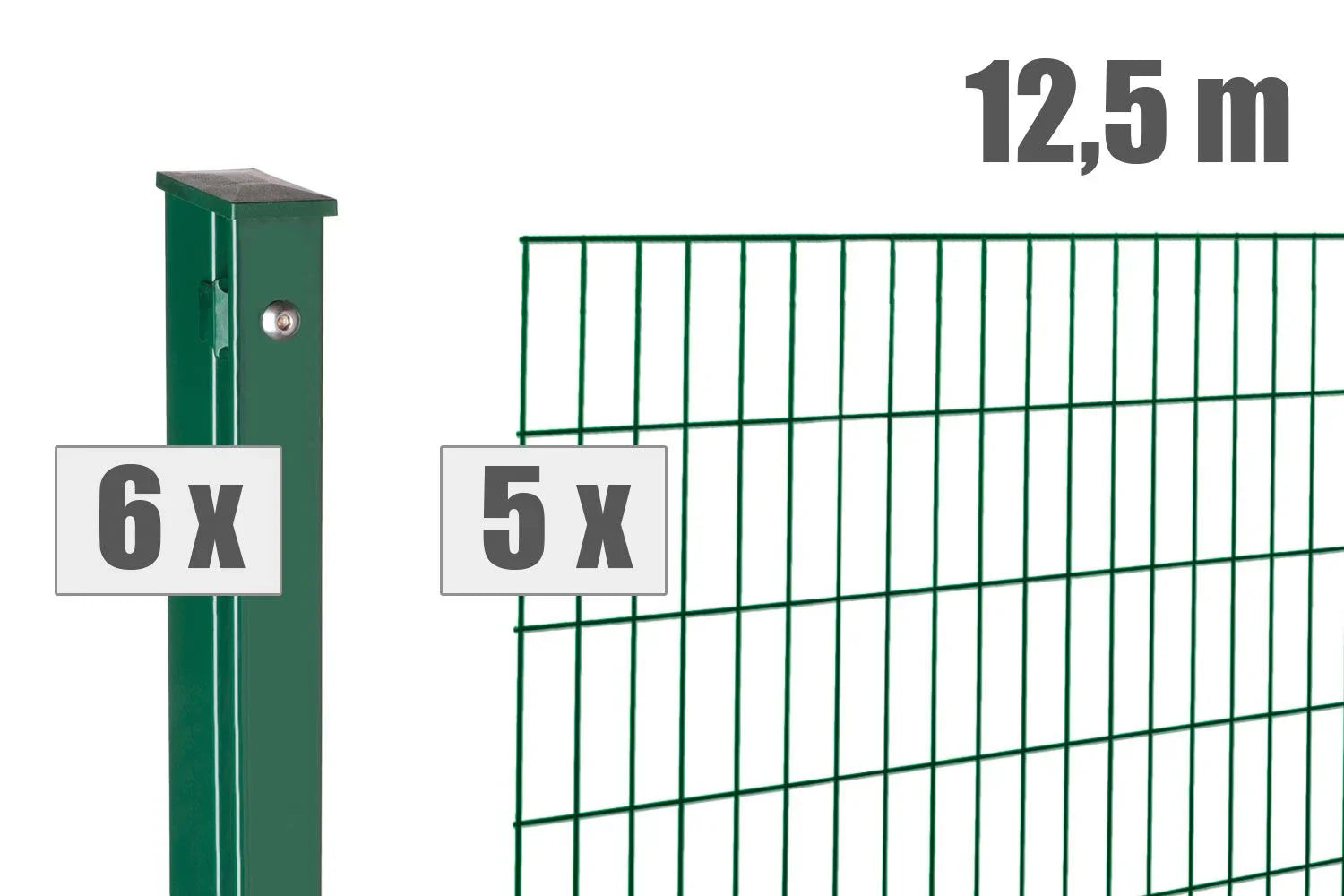

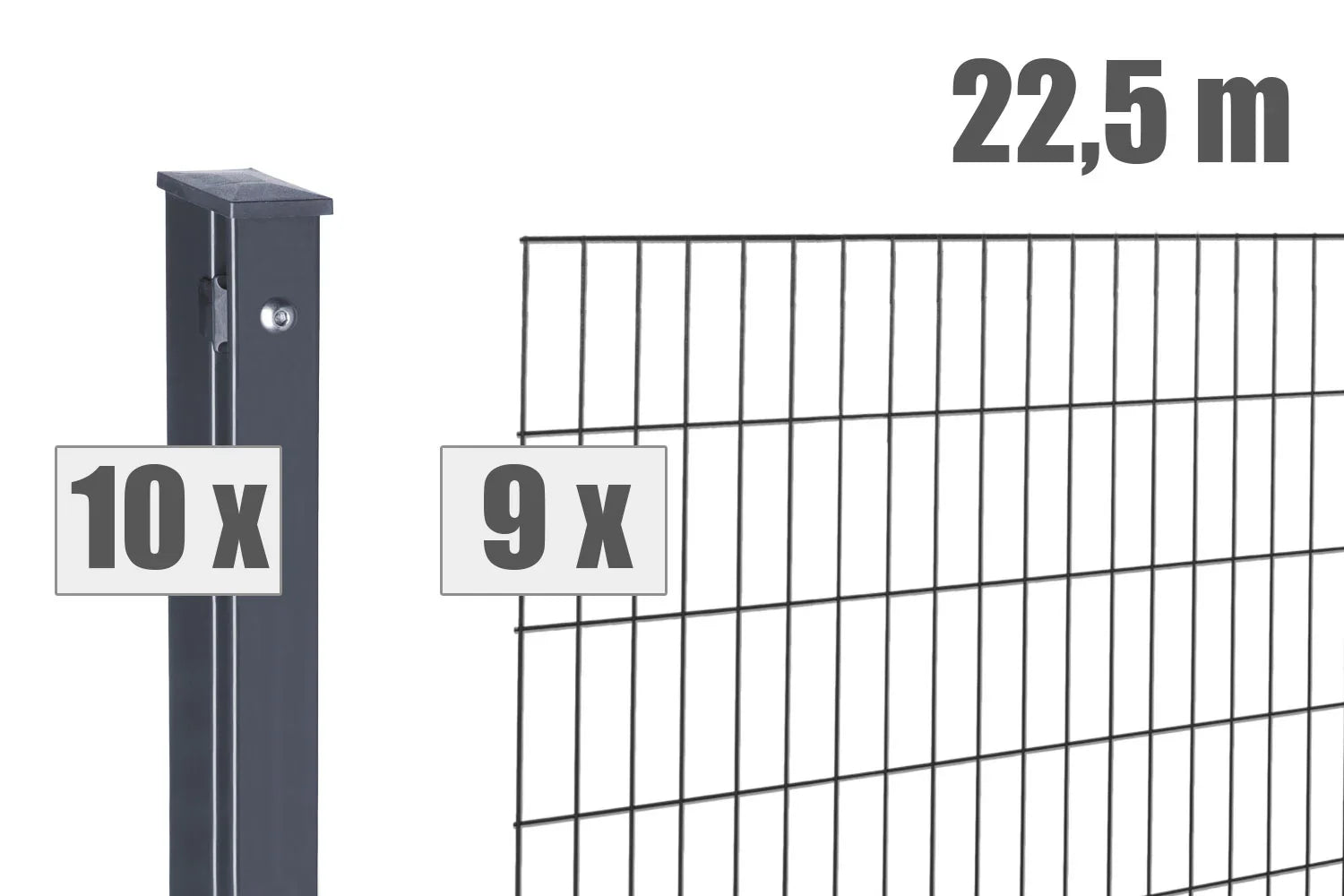

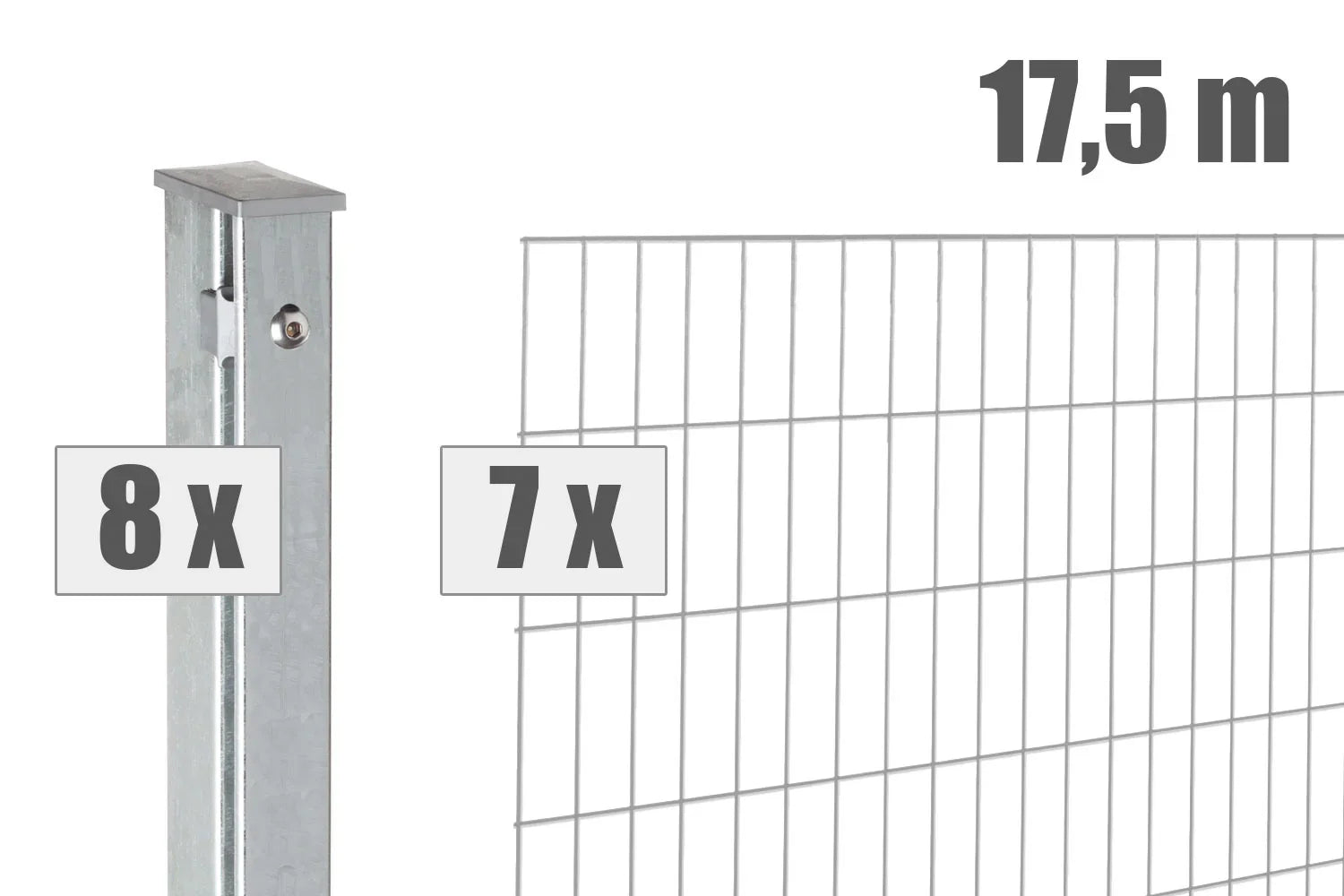

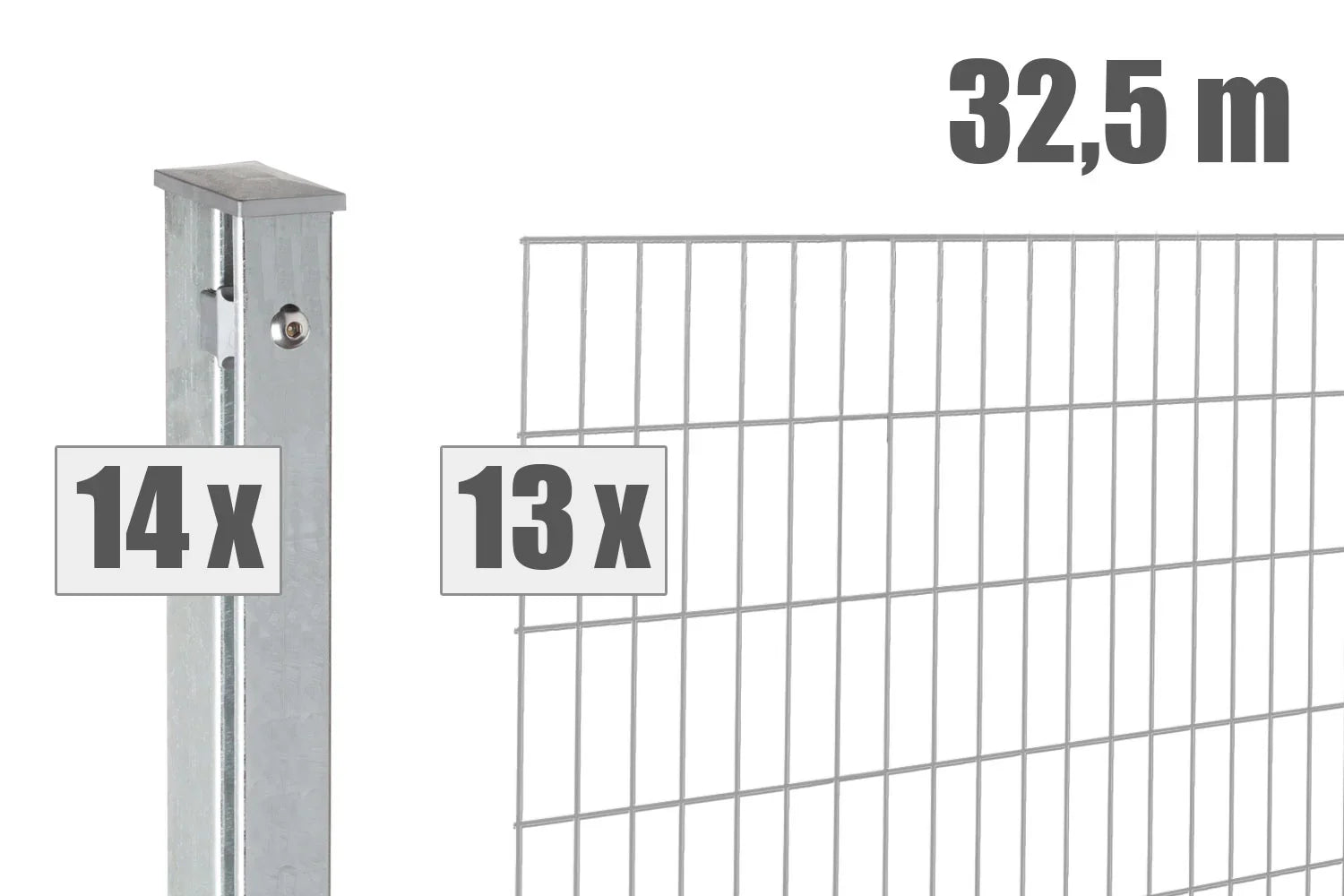

The MAX fence set consists of double wire mesh panels including matching posts and is offered in various heights up to a length of 40 m.

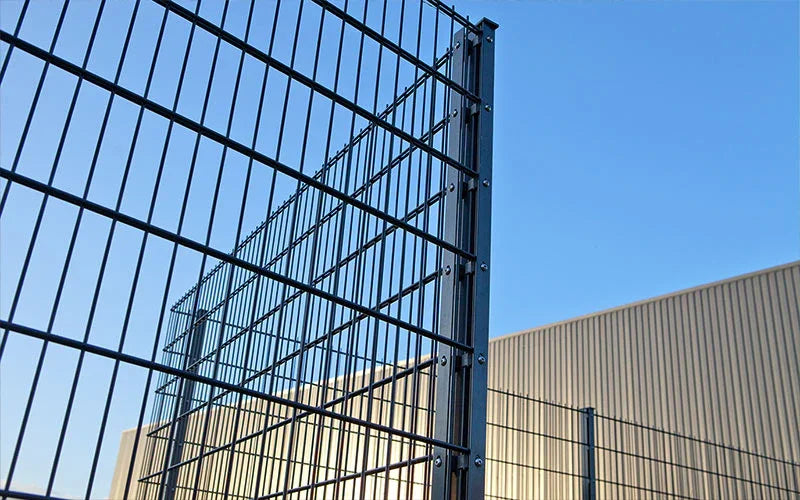

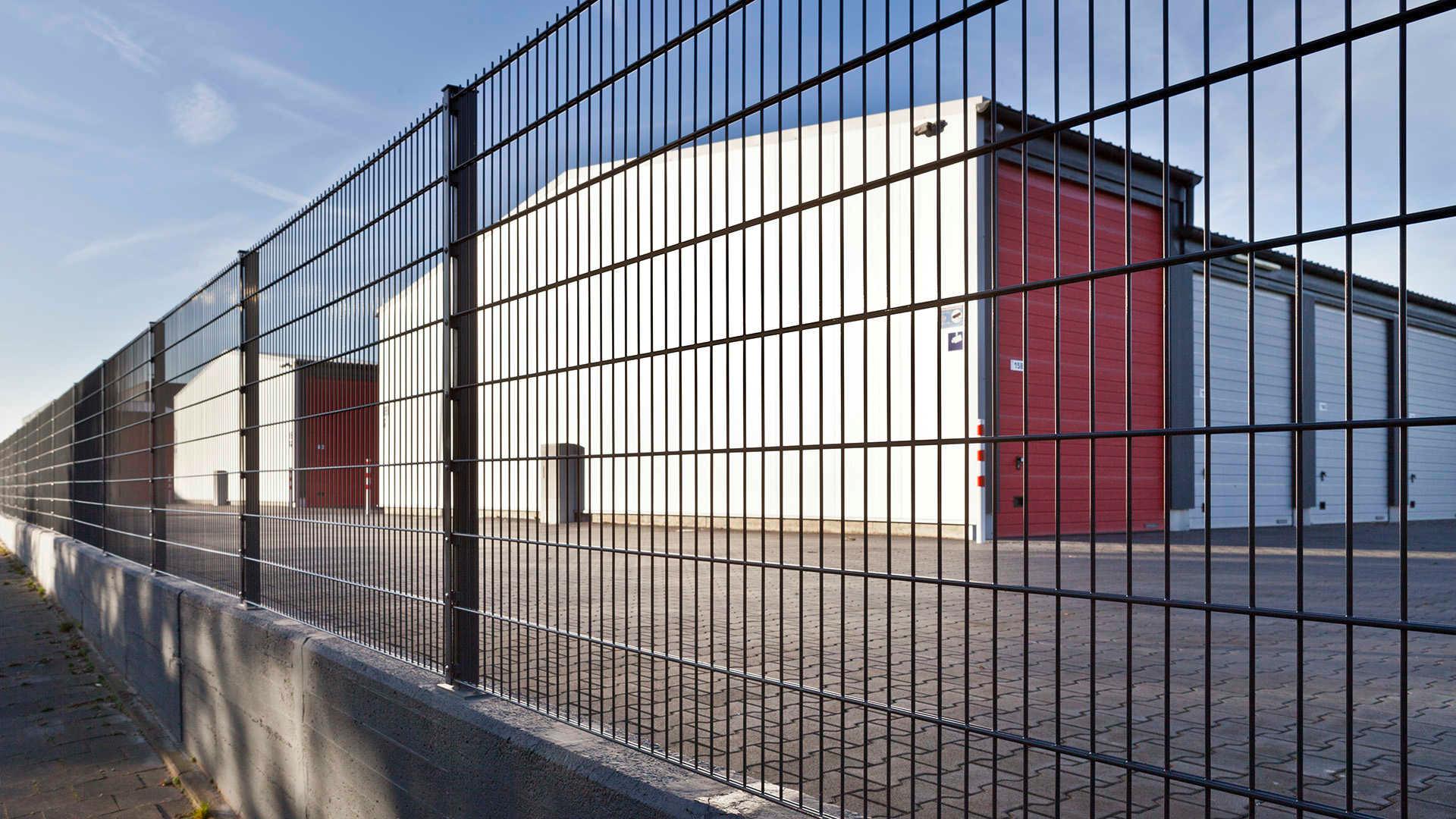

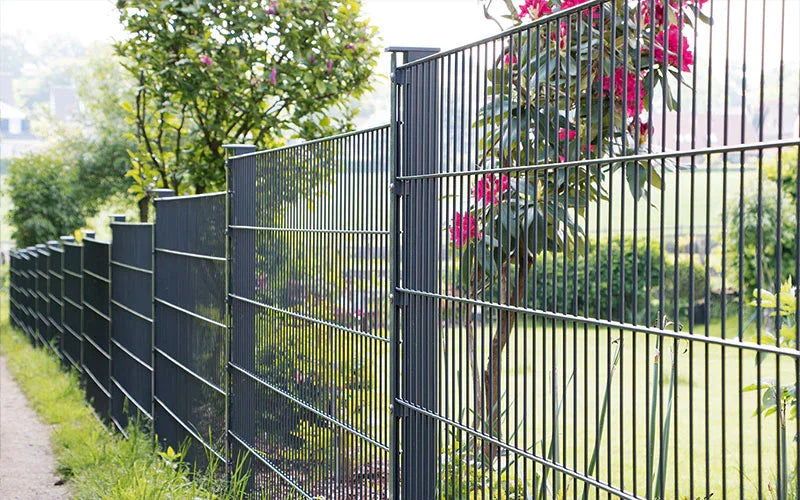

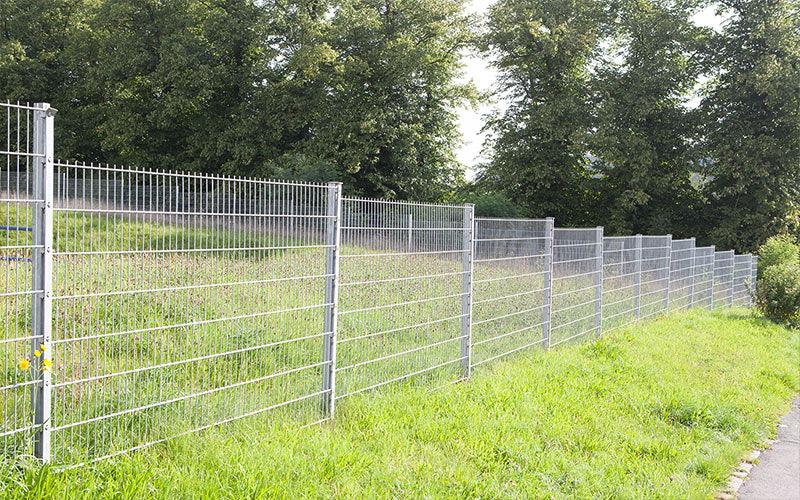

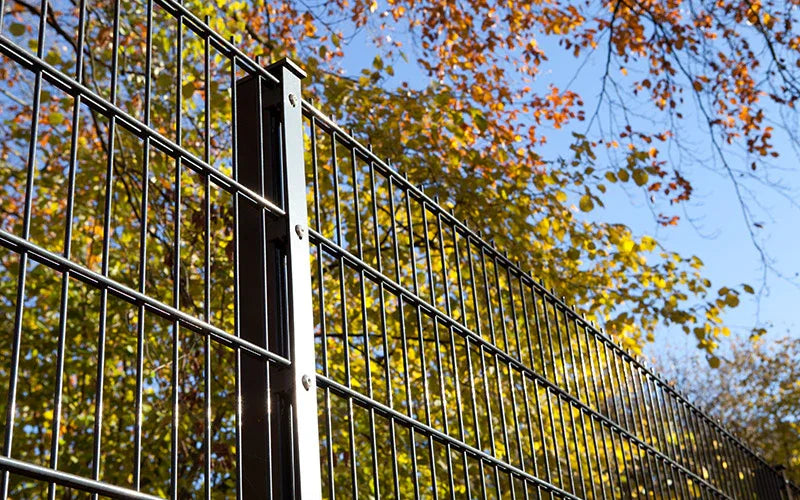

The MAX double-wire fence boasts exceptional robustness thanks to its 8 mm wire thickness in the horizontal and 6 mm in the vertical directions. This makes it ideally suited for use in municipal and industrial areas. It is available in heights up to 2430 mm and a standard length of 2510 mm. Made from sturdy, welded steel wires, the double-wire fence offers a modern and durable solution. It is suitable for both private properties and public areas with high security requirements.

This double-wire fence is available in a hot-dip galvanized finish according to DIN EN ISO 1461 or hot-dip galvanized and powder-coated (RAL 6005, moss green or RAL 7016, anthracite gray). Special RAL colors are available upon request, even in small quantities, with short lead times. Custom-sized panels without overhang are available upon request.
Under normal weather conditions, the protective zinc layer lasts up to 30 years. An additional plastic coating in RAL colors extends this protection for many more years.

Details:

• Lengths from 10m to 40m

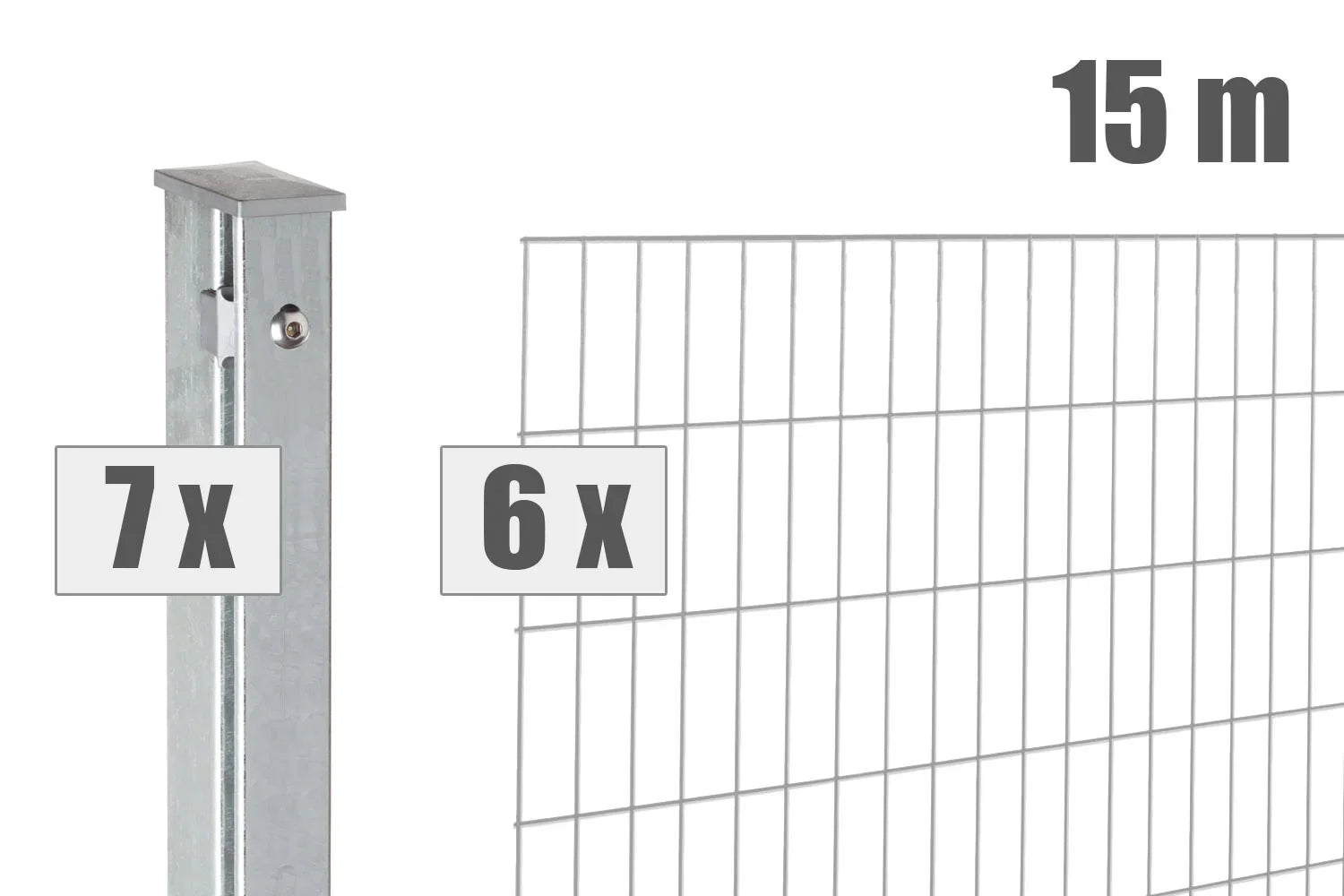

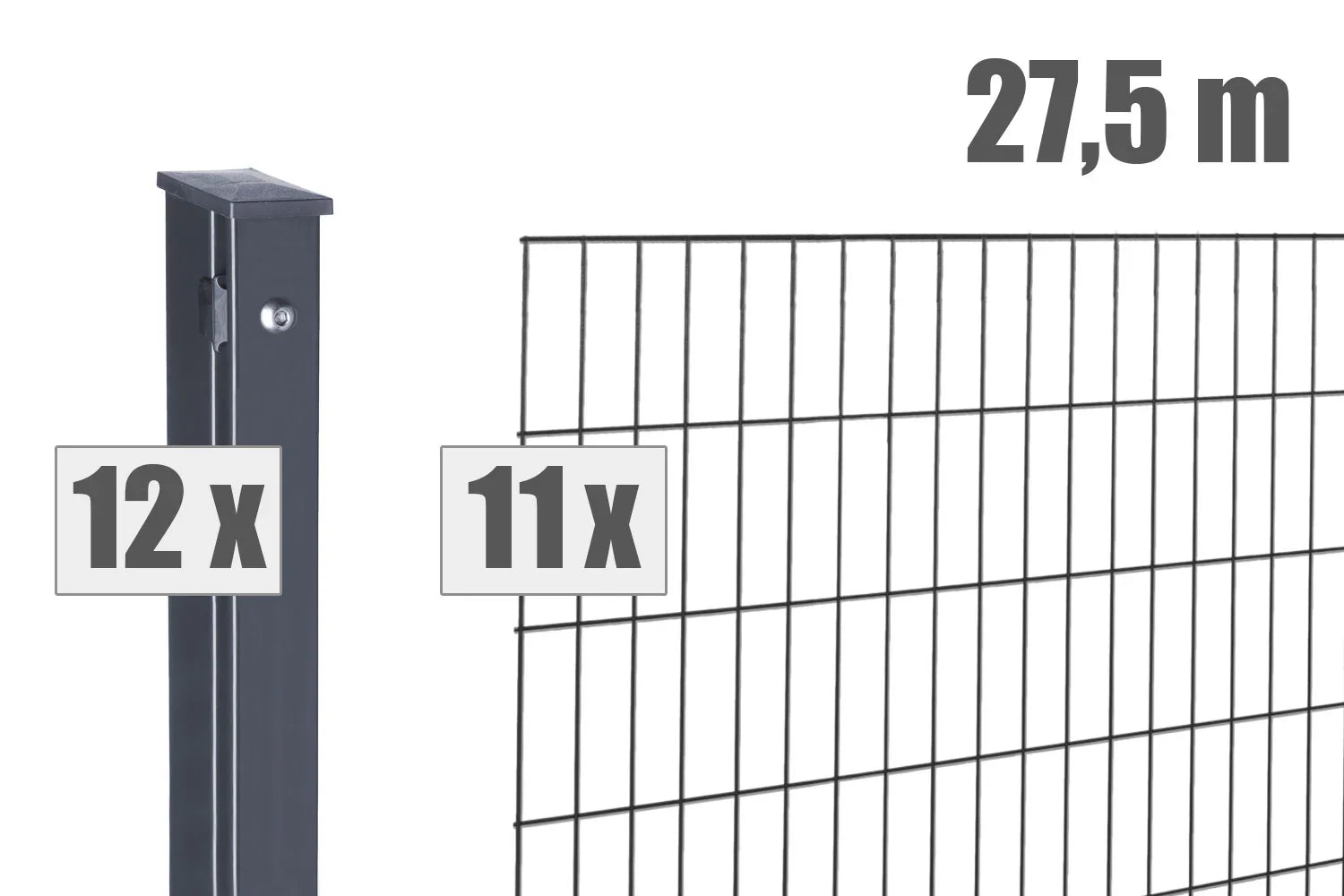

• Fence package including the appropriate number of posts TYPE VAP

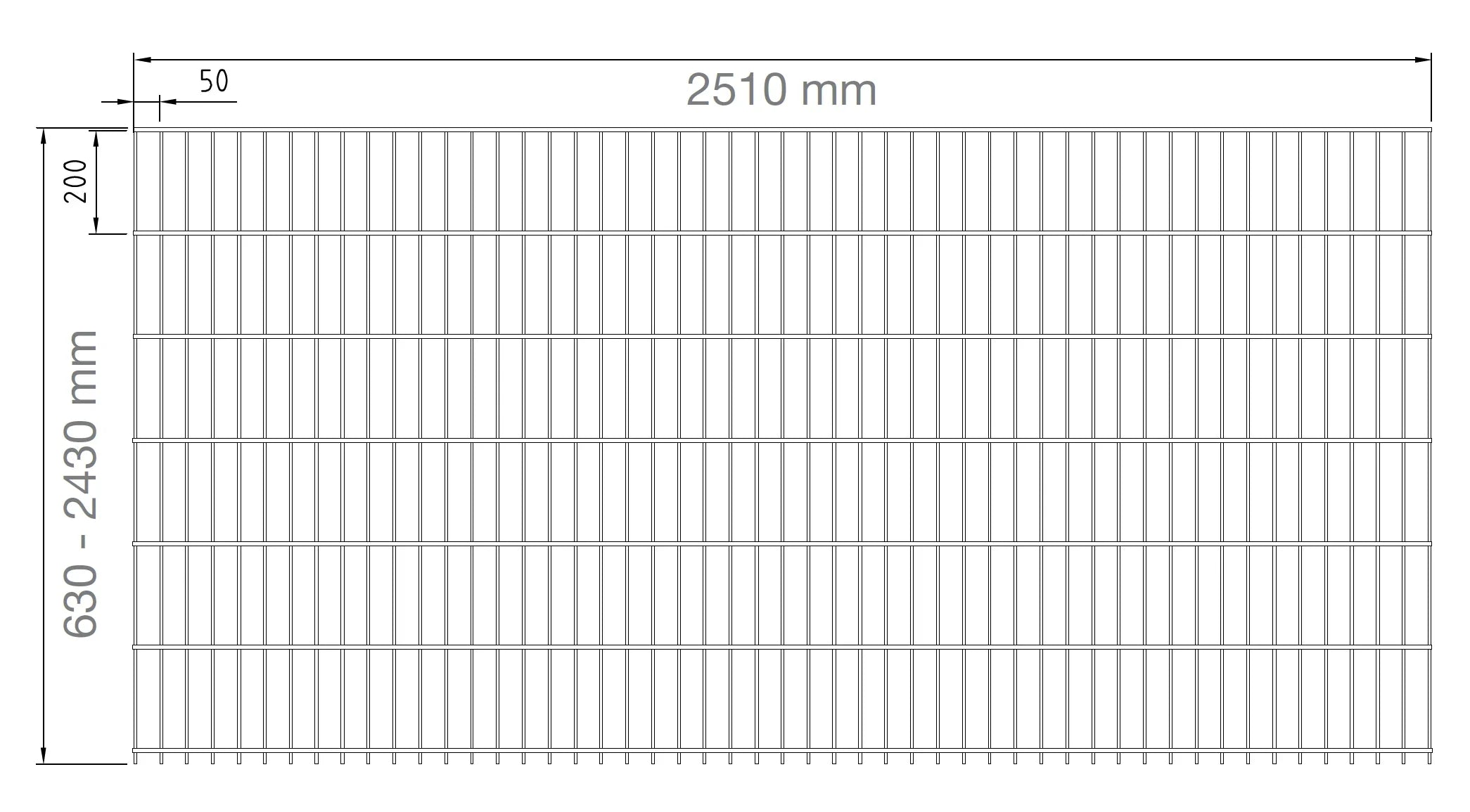

• Height: 830 mm, 1030 mm, 1230 mm, 1430 mm, 1630 mm or 1830 mm
• Grid length: 2510 mm

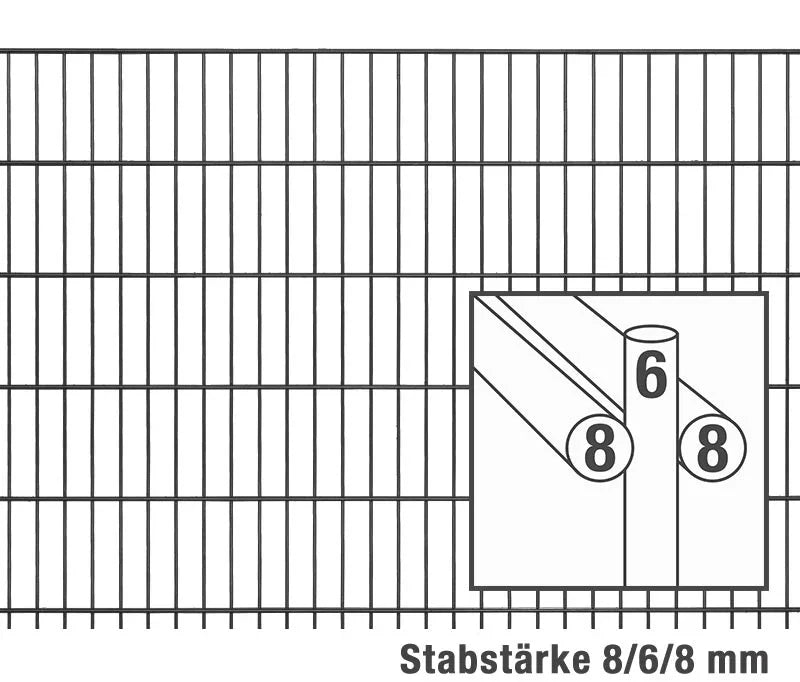

• Wire thickness: 8/6/8 mm
• The mesh size is 50/200 mm
• Surface: hot-dip galvanized (DIN EN ISO 1461) and additionally high-quality powder-coated in color
• Color selectable: RAL 6005 or RAL 7016 Anthracite Grey

Delivery includes matching posts TYPE VAP:
Includes mounting hardware (profile cover strip, stainless steel screws and plastic cap)
Post profile: 60 x 40 mm
Post length:
1300 mm with a fence height of 830 mm,
1500 mm with a fence height of 1030 mm,
1700 mm with a fence height of 1230 mm,
2000 mm with a fence height of 1430 mm,
2200 mm with a fence height of 1630 mm,
2400 mm with a fence height of 1830 mm
Post color: as selected, same color as fence panel
Ground anchoring: for embedding in concrete

Precise length calculation and post spacing:
Axial post spacing: 1 fence panel = 2520mm -> 5 fence panels = 12600mm
Light post spacing: 1 fence panel = 2480mm


Secure packaging and fast delivery:
Delivery by freight carrier, securely strapped to a disposable pallet.
Unpacking by the customer; no on-site assembly required.

Price includes shipping and delivery to the curb!

Questions and answers:

Can I cut or shorten the fence panels to fit?
Yes, you can cut the welded wire mesh panels to size using an angle grinder. The cut edges should be coated with zinc spray and paint to protect against corrosion.
You can find the appropriate zinc and paint spray in the shop under >> Fasteners and Accessories <<

How can corners be designed?
For corners larger or smaller than 90°, simply install two posts, bend the mesh panel, or attach a U-profile fence connector strip. More information can be found in the >> Assembly Instructions - Fence Package - 2m.pdf << .
For 90° corners, you can use a corner post. Available under >> Fasteners and Accessories <<

Are the posts only available for setting in concrete?
Yes, this standard product range only includes posts for setting in concrete.
However, the posts can also be shortened on the construction site, allowing the base plate adapter to be inserted into the post tube from below and the fence post to be bolted down.
The adapters are offered separately under >> Mounting and Accessories << .

How are the fence elements connected to the gatepost?
Gates are always supplied with two posts. The fence connection can be made using continuous fence angle brackets.
or can be solved using simple fence connection brackets. You can find both under >> Fasteners and Accessories <<

Is there an assembly manual for an inexperienced fence installer?
Yes, the assembly instructions are automatically included with every shipment.
You can also find the assembly instructions here: >> Assembly instructions-fence package-2m.pdf <<
If you have any questions, you can also contact us by phone or email.
